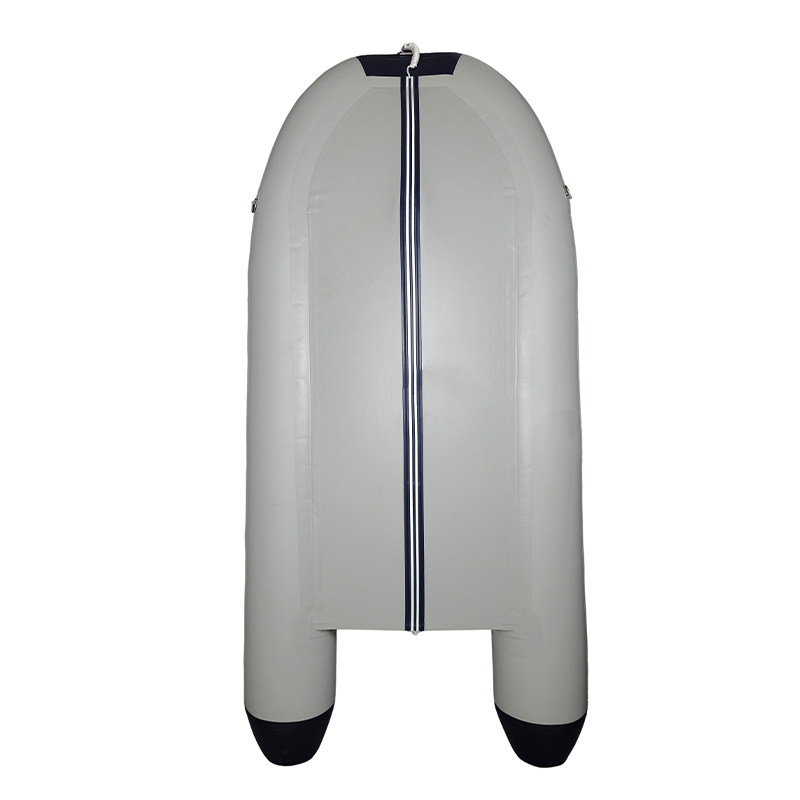

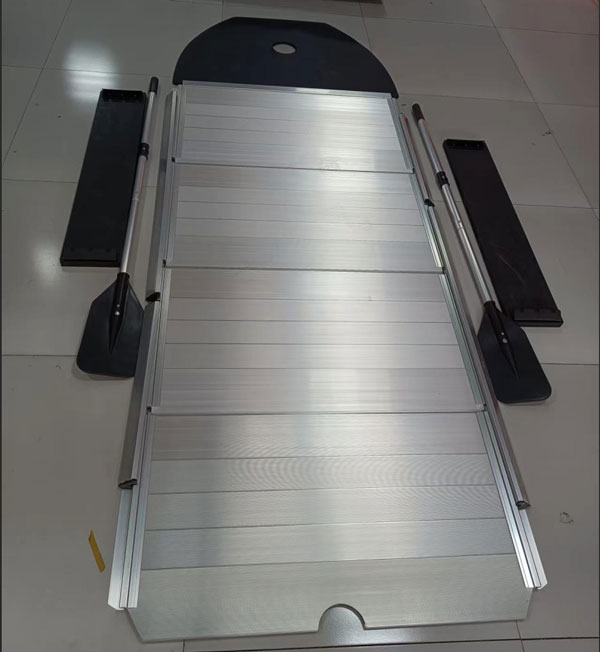

The aluminium floor's features two aluminum alloy seat plates, two aluminum alloy paddles, a plywood bag, and a boat bag. It uses a rigid 12mm thick aluminum alloy plywood base, offering significantly superior rigidity and hardness compared to other folding inflatable boats. The inflatable keel at the bottom creates a deep "V" bottom, further enhancing the boat's speed and stability in the water.

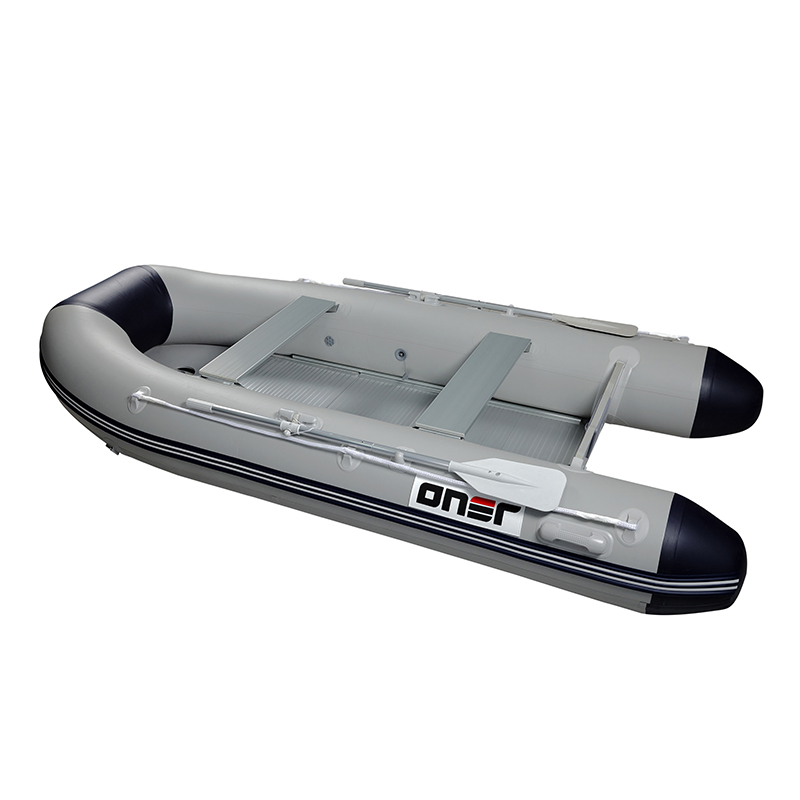

It features a dark gray and dark blue color scheme. An 8cm wide white abrasion strip with waterproof grooves around the hull and a 7cm wide white abrasion strip on the bottom effectively protect the hull. The bottom uses aluminum alloy plates, enhancing the stability and rigidity of the hull. Although the floats are inflatable, the sturdy bottom still allows the entire hull to perform very well in the water.
Specifications
| Size(IN) | 9´10"*4´11" | 10´10"*4´11" | 11´10"*5´6" | 12´10"*5´6" | 13´9"*6´3" | 15´5"*6´3" |
| Size(CM) | 300* 151cm | 330* 151cm | 360* 168cm | 390* 168cm | 420* 190cm | 470* 190cm |
| Tube diameter | 40cm(1´4") | 40cm(1´4") | 45cm(1´6") | 45cm(1´6") | 50cm(1´8") | 50cm(1´8") |
| No.of air chamber | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
| Max passenger | 4 | 4+1 | 5 | 7 | 9 | 10 |
| Max payload | 560kg(1234 lbs) | 620kg(1366 lbs) | 700kg(1543 lbs) | 780kg(1719 lbs) | 920kg(2028 lbs) | 1030kg(2270 lbs) |
| Transom height | 38cm(1´3") | 38cm(1´3") | 38cm(1´3") | 38cm(1´3") | 50cm(1´8") | 50cm(1´8") |
| Max motor power | 8.94KW/12HP | 11.18KW/15HP | 18.64KW/25HP | 22.37KW/30HP | 29.82KW/40HP | 37.28KW/50HP |
| Net weight | 38kg(83.7 1bs) | 58kg(127 1bs) | 65kg(143 1bs) | 70kg(154 1bs) | 78kg(171 1bs) | 88kg(194 1bs) |
Detailed Features
High-quality accessories

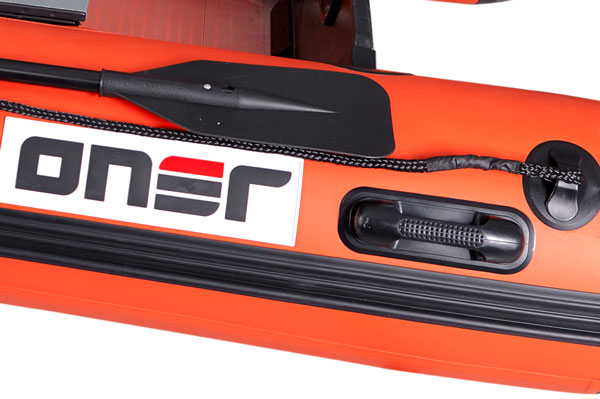

Rubber brand logo, Abrasion strip with waterproof groove and superior hard handles

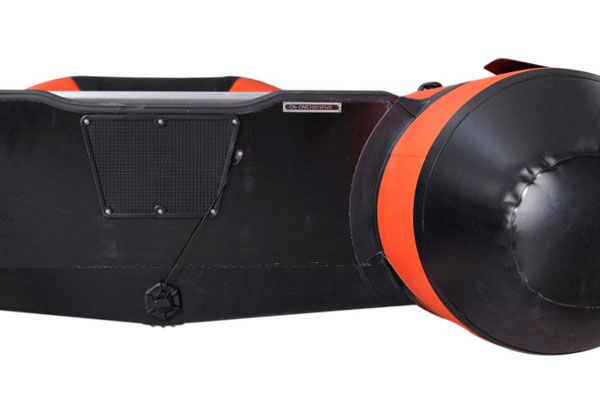

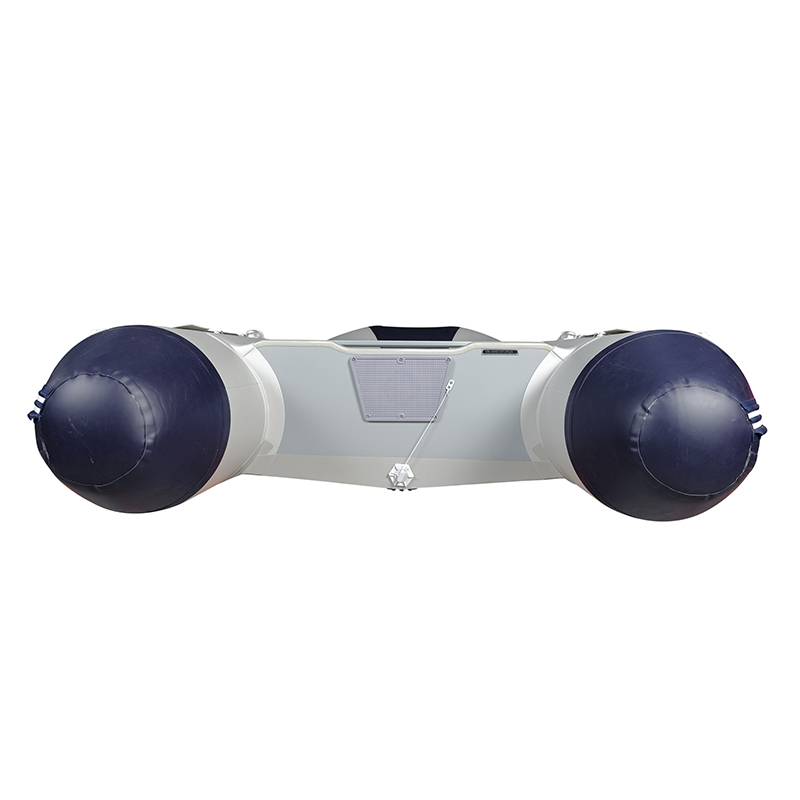

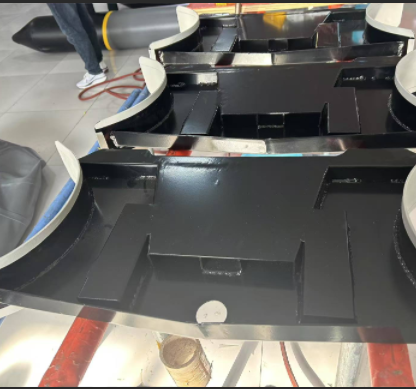

Marine-graded wooden transom
Motor mounting plate and plug

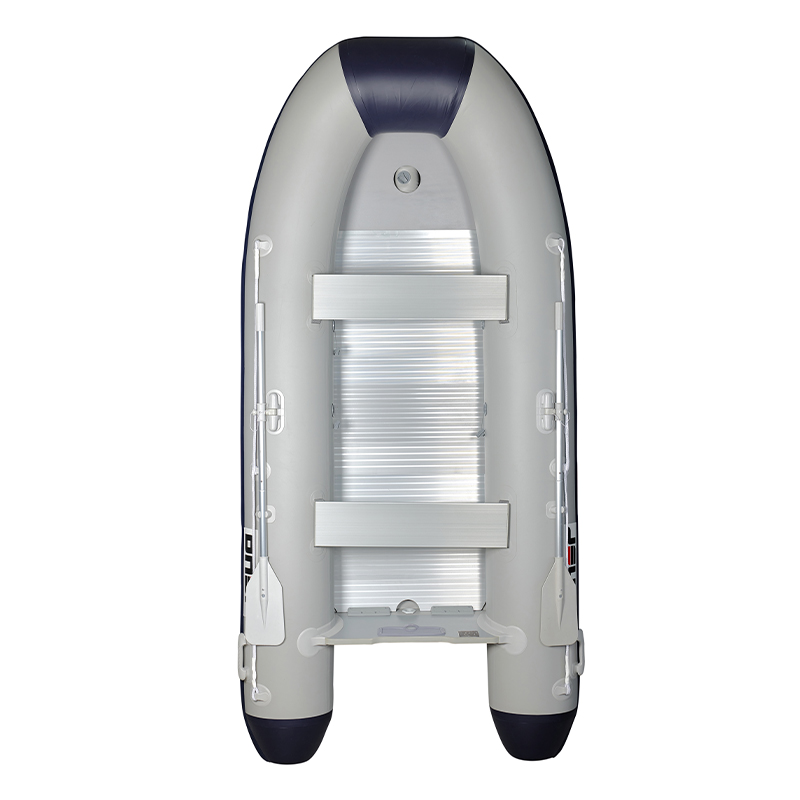

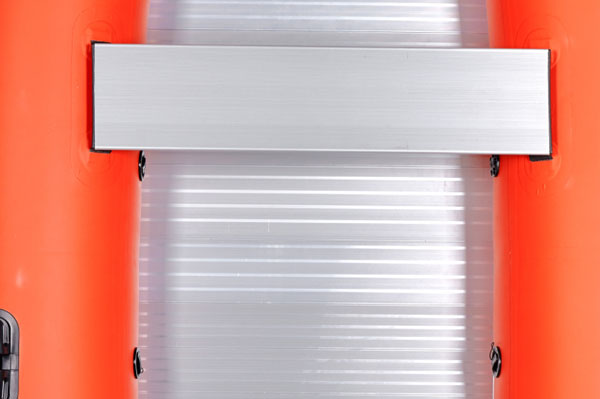

Heavy-duty aluminium bottom and bench seat
A rigid bottom provides inflatable boats with excellent quality assurance.
Standard Features
1. The aluminum alloy hull increases the rigidity and hardness of the vessel.
2. The deep "V" hull shape allows the vessel to "cut through the water," quickly cutting through the water and moving forward more smoothly.
3. The superior heat-sealing process significantly increases the airtightness, aesthetics, and lifespan of the hull's pontoons.
4. The anti-collision and wear-resistant strips around the hull and bottom effectively protect the vessel and reduce wear and tear.
Standard accessories
· Wooden seat ·Carry bag · Aluminium oars · Foot pump · Repair kit
Optional accessories
· Boat sunshade · Seat bag · Fishing rod holder · Wheels on transom
Configuration Features
Aluminium floor
It provides the fishing boat with excellent rigidity and support
Hot-welded technnology
The heat sealing process effectively reduces the risk of air leakage
Marine-grade wooden or aluminum transom
Wooden transoms are resistant to seawater corrosion. Of course, you can also choose better aluminum alloy transom.
Tube fabric
PVC tarpaulin fabric is puncture-resistant, seawater-resistant, and UV-resistant. If your budget allows, you can also buy the better Hypalon material.
• Gear Capacity – Generous deck space for improved
• Carry Handle – Front, rear and center rubber carry handles for easy transport
• D-buckle – Convenient for tugboats
• Valve – Durable one-way valve for easy inflation and deflation
• Aluminium oars – Premium high-quality two-section paddles
• Rubber strakes – Anti-collision strip with waterproof groove
